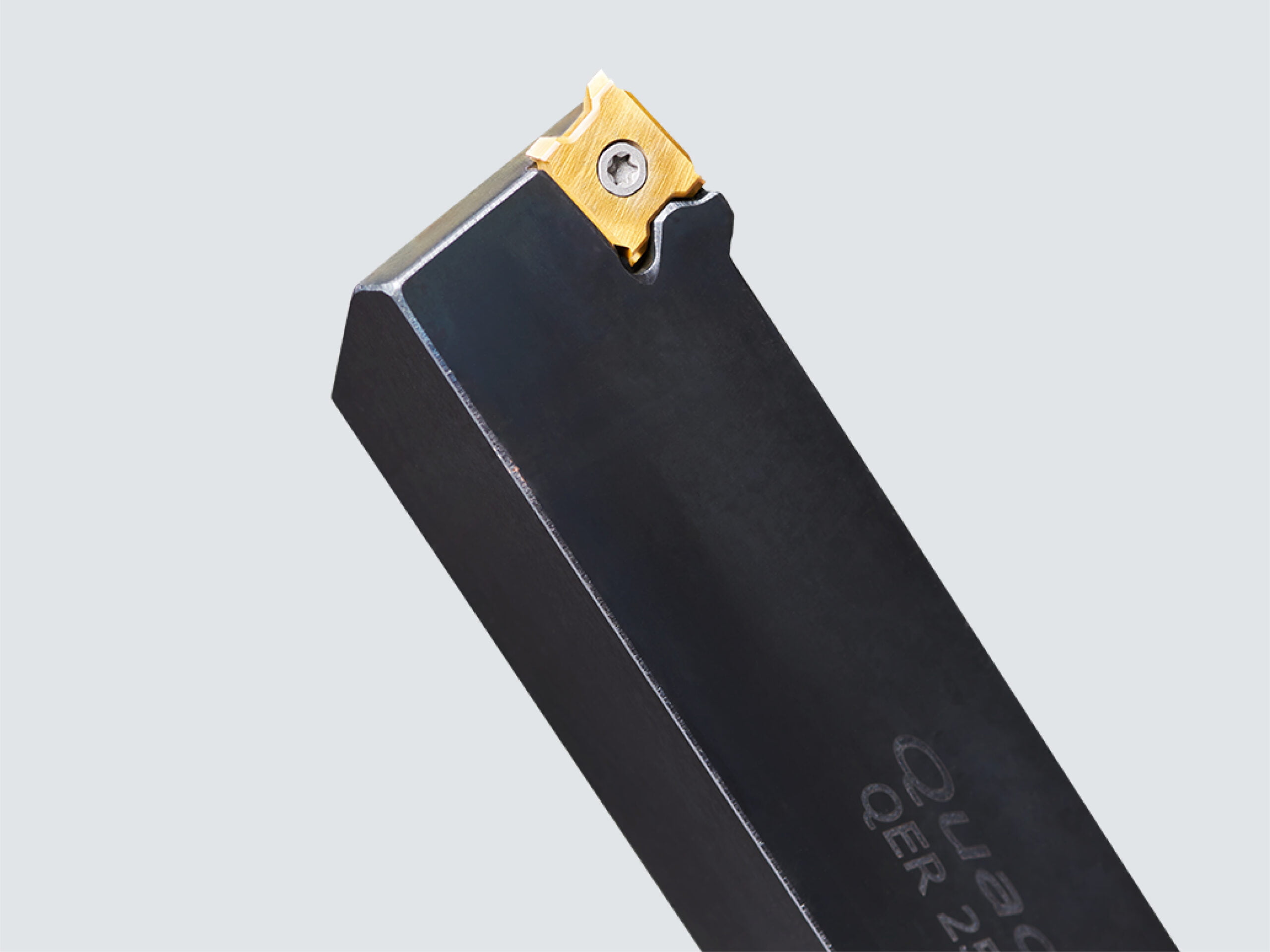

QuadCut tool holder

QuadGroove®

When accuracy requirements are high and every detail counts, QuadGroove® is the obvious choice for professional groove machining. Developed by Scandinavian Tool Systems AB, QuadGroove® is a specialized solution for external circlip grooves and other precision applications in turning.

  • Maximum precision: Track width with tolerances within ±0.02 mm.
  • Wide range of applications: Handles grooves from 0.8 mm up to 4.0 mm.
  • Circlip-ready: Fully compliant with DIN 471 standards.
See our PDF-document for a detailed presentation of this product:
Categories: ,
  • Technical details

    Technical details

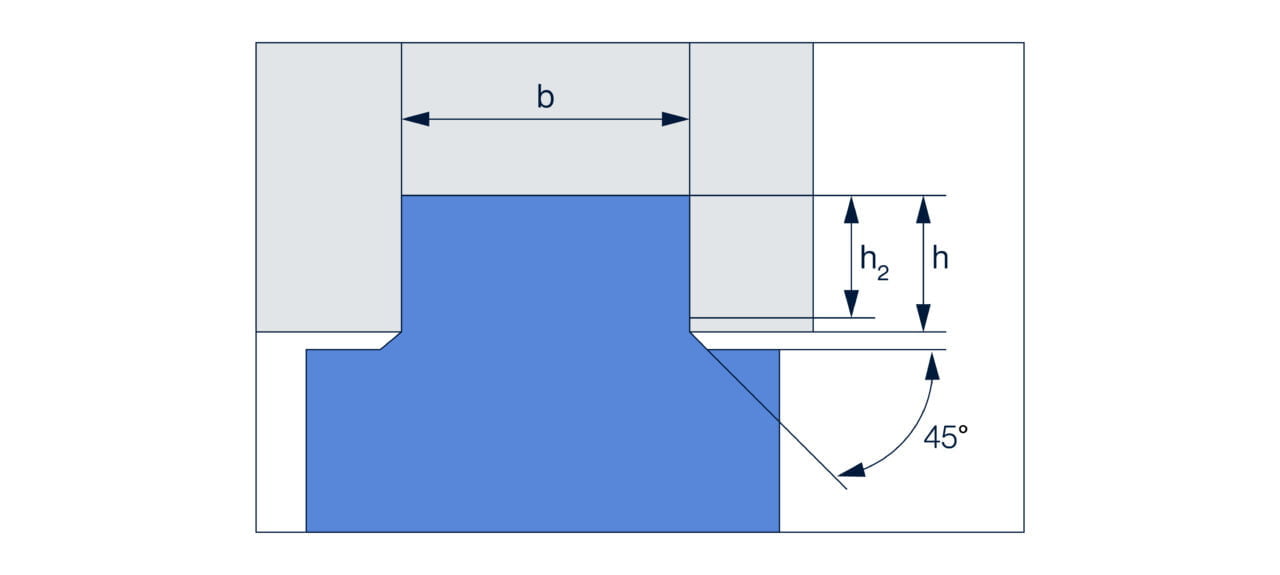

    Circlip grooves

    DIN 471
    External grooving

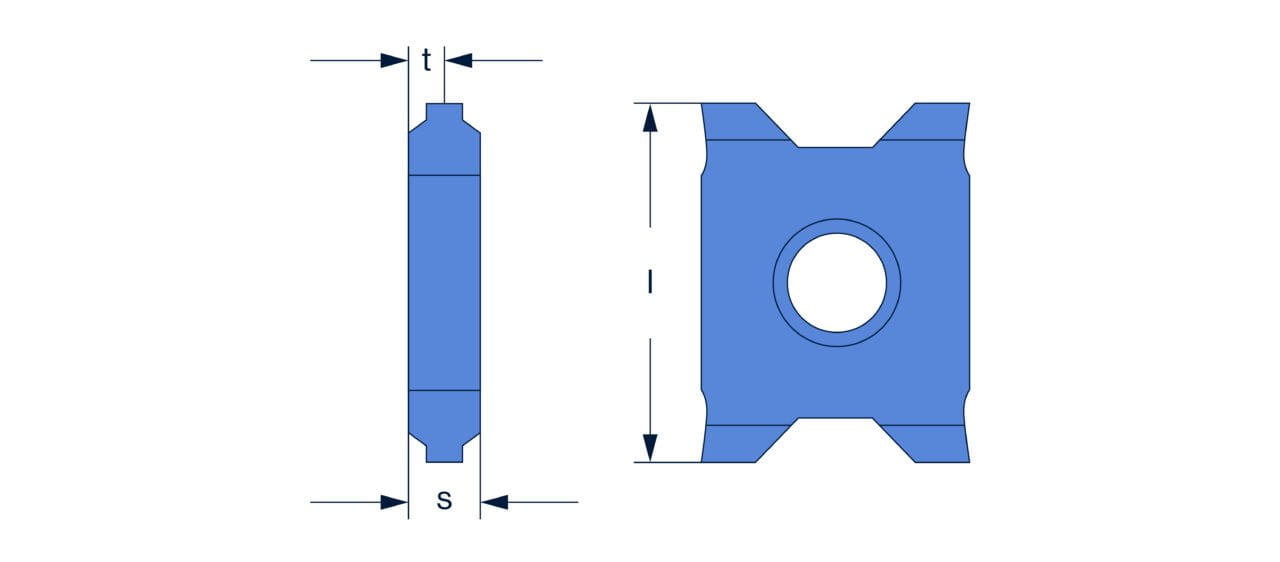

    CirclipCatalogueDimensionsStock standardPrice-
    numberlstb ± 0.02hh2 ± 0.02T10CT10Rgroup
    1.012E C1.1-0.2122.41.21.210.20.16**31
    1.012E C1.1-0.25122.41.21.210.250.21**31
    1.012E C1.1-0.3122.41.21.210.30.26**31
    1.012E C1.1-0.35122.41.21.210.350.31**31
    1.012E C1.1-0.4122.41.21.210.40.36**31
    1.212E C1.3-0.5122.41.21.410.50.43**31
    1.212E C1.3-0.55122.41.21.410.550.48**31
    1.212E C1.3-0.7122.41.21.410.70.63**31
    1.512E C1.6-0.7122.41.21.710.70.60**31
    1.512E C1.6-0.85122.41.21.710.850.75**31
    1.512E C1.6-1.0122.41.21.711.00.90**31
    02.1512E C1.85-1.0122.41.21.961.00.85**31
    02.1512E C1.85-1.25122.41.21.961.251.10**31



    CirclipCatalogueDimensionsStock standardPrice-
    numberlstb ± 0.02hh2 ± 0.02K20CK20Rgroup
    2.020E C2.15-1.5204.62.32.261.51.35**33
    2.520E C2.65-1.5204.62.32.761.51.35**33
    2.520E C2.65-1.75204.62.32.761.751.60**33
    3.020E C3.15-1.75204.62.33.261.751.60**33
    4.020E C4.15-2.0204.62.34.262.01.85**33
    4.020E C4.15-2.5204.62.34.262.52.35**33

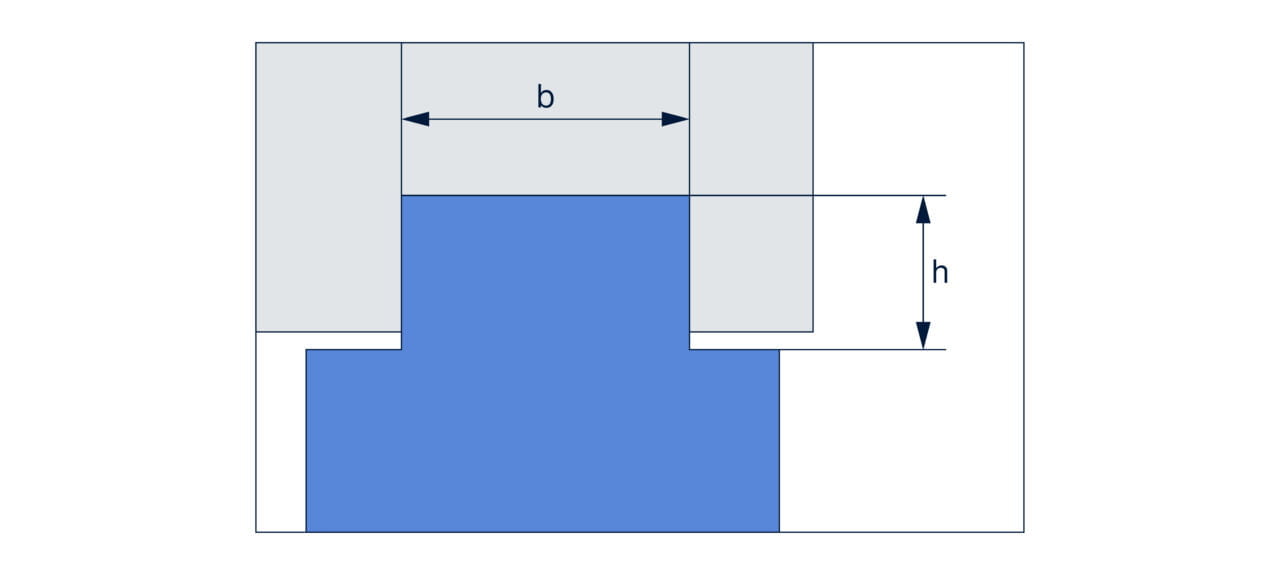

    Circlip grooves

    DIN 471
    External grooving

    CirclipCatalogueDimensionsStock standardPrice-
    numberlstb ± 0.02hT10CT10Rgroup
    0.812E C0.9-0.8122.41.20.901.0**31
    1.012E C1.1-1.0122.41.21.101.2**31
    1.212E C1.3-1.3122.41.21.301.5**31
    1.512E C1.6-1.5122.41.21.601.8**31
    02.1512E C1.85-2.5122.41.21.853.0**31



    CirclipCatalogueDimensionsStock standardPrice-
    numberlstb ± 0.02hK20CK20Rgroup
    2.020E C2.15-2.5204.62.32.153.0**33
    2.520E C2.65-2.5204.62.32.653.0**33
    3.020E C3.15-2.5204.62.33.153.0**33
    4.020E C4.15-3.5204.62.34.153.5**33
